Wearable ECG Holter Monitor

System Overview

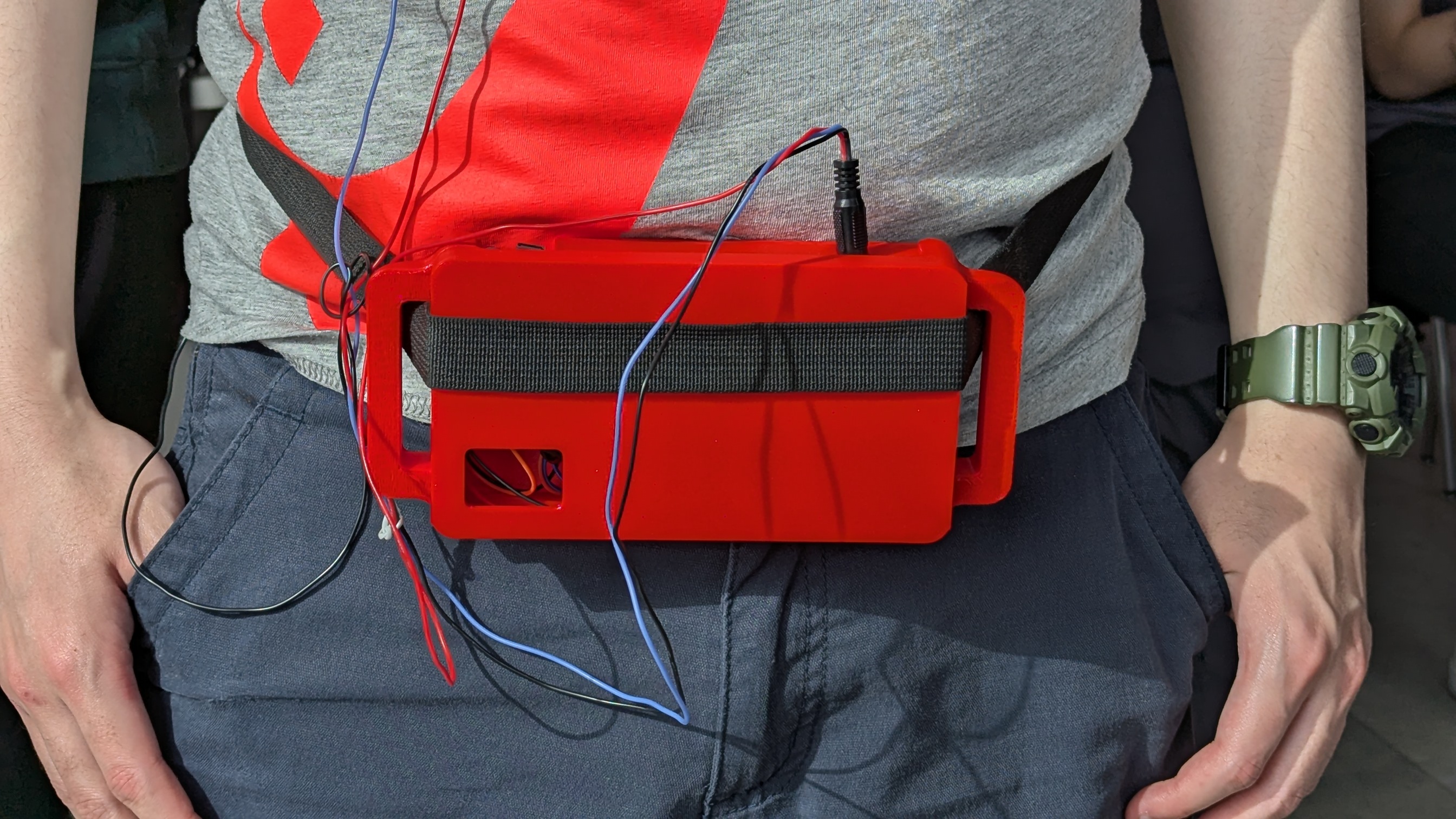

A patient wears an ESP32 + AD8232 node on their torso. The device continuously digitises the single-lead ECG at 250 Hz and streams 250-sample batches over Wi-Fi to a Django/Channels server, which runs an 8-stage DSP filter and fans the cleaned waveform out to every connected browser in real time.

Hardware & Firmware

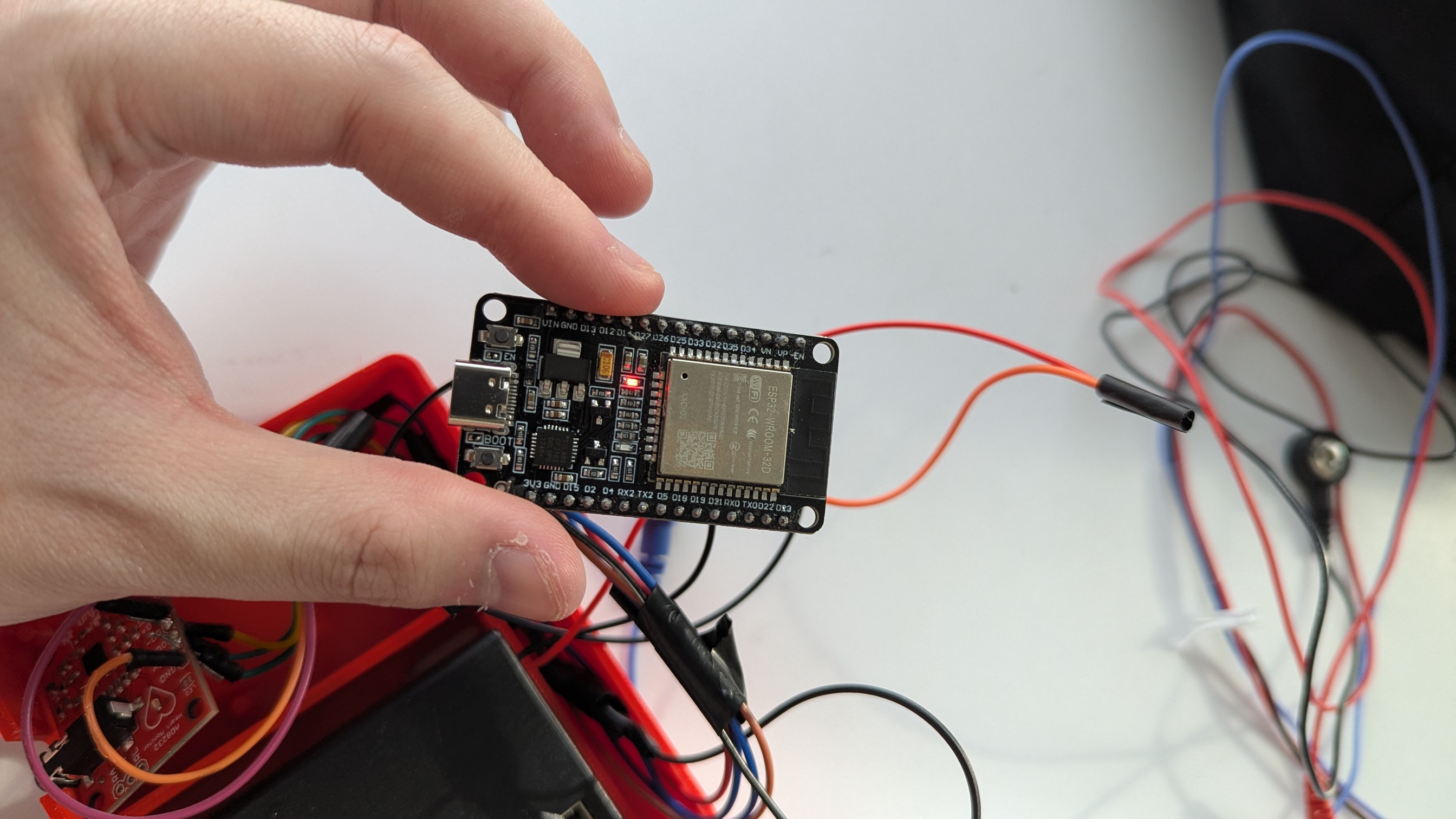

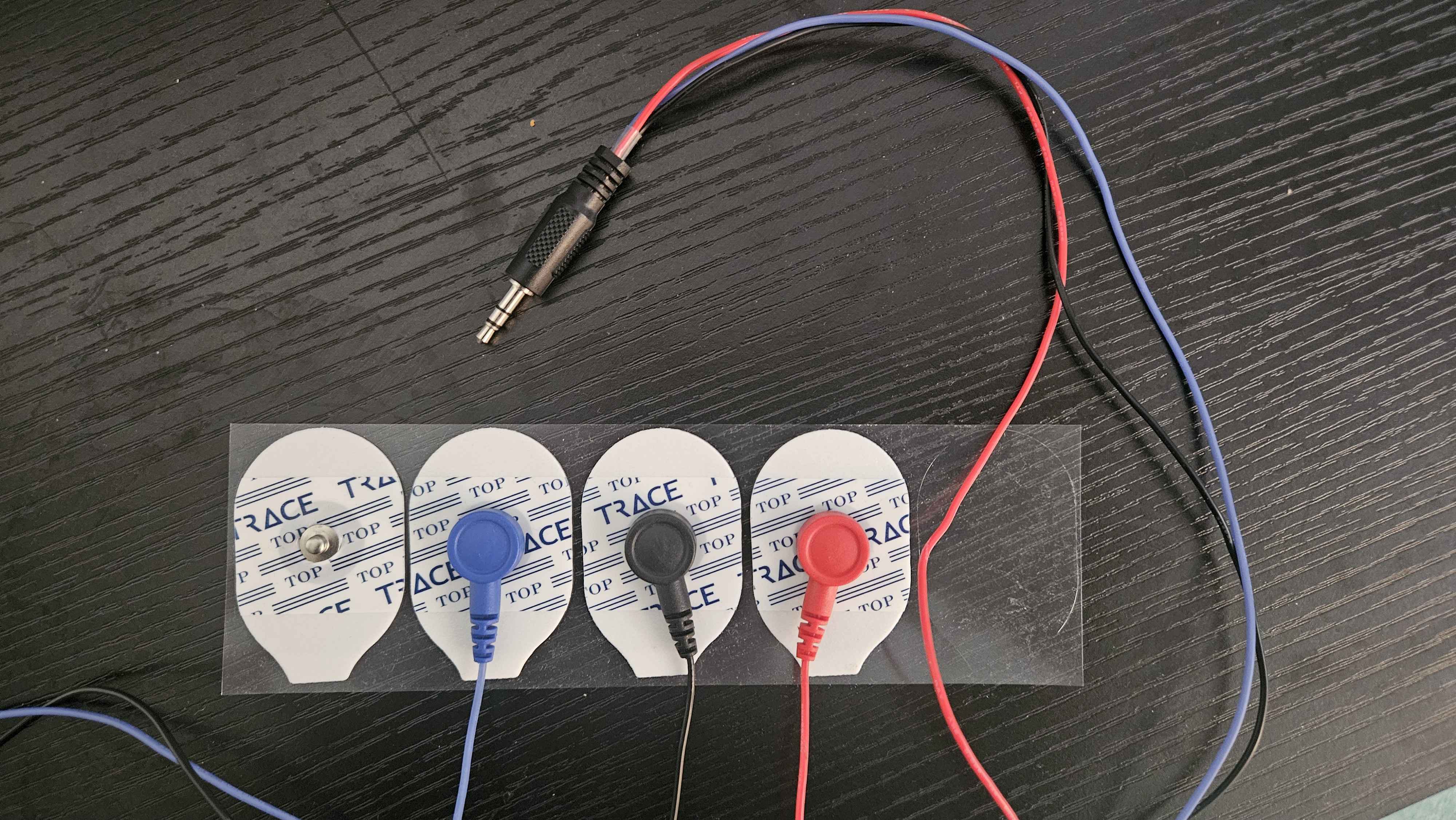

Three electrodes (RA, LA, RL reference) feed the AD8232 analog front-end, which amplifies, common-mode-rejects, and band-passes the ECG signal into the ESP32's input range. The AD8232 output drives GPIO36 (ADC1_CH0 — the input-only VP pin), sampled at 12-bit resolution. Wiring is deliberately minimal: only three wires reach the ESP32, since the firmware reads a single analog pin.

The firmware collects 250 samples at 4 ms intervals (~250 Hz), serialises them as {"ecg":[…]}, and sends the JSON over a persistent WebSocket. If the connection drops, it reconnects transparently before the next batch.

#define ECG_PIN 36
#define SAMPLE_COUNT 250
#define SAMPLE_DELAY_MS 4        // ~250 Hz sampling rate

void loop() {
  if (!client.available()) {     // auto-reconnect if dropped
    connectToWebSocket();
    return;
  }
  int ecg[SAMPLE_COUNT];
  for (int i = 0; i < SAMPLE_COUNT; i++) {
    ecg[i] = analogRead(ECG_PIN);   // 12-bit: 0..4095
    delay(SAMPLE_DELAY_MS);
  }
  client.send(serialize(ecg));    // -> {"ecg":[...]}
  client.poll();
}

Signal Processing Pipeline

Every incoming batch passes through filter_ecg_signal() in ecg/filters.py on the server before being broadcast. The pipeline is built on NumPy, SciPy (butter, sosfiltfilt, iirnotch, savgol_filter, welch), and PyWavelets. Any stage that errors out fails gracefully so a single bad batch never breaks the live stream.

1. 0
   Outlier Clipping Robust clip to median ± 5 MAD — removes gross spikes without being skewed by extreme values
2. 1
   Baseline Wander Removal Segmented polynomial detrend (long batches) + 0.5 Hz Butterworth high-pass, zero-phase SOS
3. 2
   Three-Band Filtering Wide 0.5–45 Hz · QRS 8–20 Hz · P/T 0.5–10 Hz — separate Butterworth band-passes per ECG feature
4. 3
   Adaptive QRS Weighting Sliding energy mask recombines bands: 0.3 × wide + 0.5 × QRS × mask + 0.2 × P/T × (1 − mask)
5. 4
   Powerline Removal Auto-detects 50/60 Hz via Welch PSD; cascaded iirnotch filters on fundamentals and 2nd/3rd harmonics
6. 5
   Wavelet Denoising sym6 decomposition with level-dependent soft thresholding — suppresses broadband noise, preserves ECG morphology
7. 6
   Adaptive Smoothing SNR-based: noisy → Savitzky–Golay (~40 ms); moderate → 35 Hz low-pass; clean → pass-through
8. 7
   R-Peak-Preserving Outlier Replace Rolling median/MAD replaces residual outliers; detected R-peak regions are explicitly protected from flattening
9. 8
   Re-centre & Clip Centre on 2048 (ADC midpoint), clip to integer range 0–4095 — matches the dashboard's fixed y-axis

Backend — Django + Channels

Standard Django's request/response cycle cannot hold a long-lived bidirectional connection open, so the project runs on the ASGI stack: Django Channels adds WebSocket support and Daphne serves the application. Both the ESP32 device and every dashboard browser connect to the same ws/ecg/ endpoint and are placed into a single Channels group (ecg_group), letting one producer fan out to many viewers. The in-memory channel layer is used for development; a Redis layer is required for multi-process deployment.

class ECGConsumer(AsyncWebsocketConsumer):
    async def receive(self, text_data):
        raw = json.loads(text_data).get("ecg", [])
        filtered = filter_ecg_signal(raw)        # 8-stage DSP
        await self.channel_layer.group_send(
            "ecg_group",
            {"type": "send_ecg", "data": filtered},
        )

    async def send_ecg(self, event):
        await self.send(json.dumps({"filtered": event["data"]}))

Frontend Dashboard

A single-page Chart.js 4.4.1 dashboard keeps a rolling 1000-sample buffer (~4 s at 250 Hz). Each incoming batch is appended to the right while the oldest samples drop off the left, producing the scrolling-trace effect of a bedside monitor. The y-axis is pinned to 0–4095 so the waveform scale stays stable, and animation is disabled for instantaneous redraws. Because every tab subscribes to the same ecg_group, the live trace appears identically on every machine that can reach the server — making the monitor genuinely remote.

const BUFFER_SIZE = 1000;
let ecgBuffer = Array(BUFFER_SIZE).fill(0);
const ws = new WebSocket(`ws://${location.host}/ws/ecg/`);

ws.onmessage = (event) => {
  const { filtered } = JSON.parse(event.data);
  // drop oldest, append newest -> scrolling trace
  ecgBuffer = ecgBuffer.slice(filtered.length).concat(filtered);
  ecgChart.data.datasets[0].data = ecgBuffer;
  ecgChart.update();
};

End-to-End Data Flow

The journey of a single batch from the patient's chest to the clinician's screen:

1. ESP32 + AD8232

   Samples the AD8232 output 250× at 4 ms intervals — about one second of signal per batch.

2. ESP32 → Server

   Serialises {"ecg":[250]} and sends it over the Wi-Fi WebSocket to ws://<server>:8000/ws/ecg/.

3. ECGConsumer.receive()

   Parses the batch and runs filter_ecg_signal() — the 8-stage DSP pipeline.

4. group_send → ecg_group

   The cleaned array fans out to every socket in the group via send_ecg().

5. Browser Dashboard

   Each client appends {"filtered":[250]} to its rolling buffer and redraws the Chart.js trace.

Limitations & Future Work

The build is a working proof of concept covering the full acquisition → processing → visualisation loop. Hardening it toward production would mean:
